如何为 openGauss 调优带有 CASE 表达式的 SQL 语句 ?

openGauss 是一个开源的关系型数据库管理系统(RDBMS),起源于 PostgreSQL。它专为高性能、高可用性和企业级功能而设计。openGauss 最初由华为开发,后来开源给社区。

以下是开发人员可能会遇到的一个常见问题:编写动态 SQL 语句时,在 CASE 表达式中硬编码了 a = ‘low’,而不是使用绑定变量 = :var,如下所示:

SELECT *
FROM   employee
WHERE
       CASE
         WHEN emp_salary< 1000
         THEN ‘low’
         WHEN emp_salary>100000
         THEN ‘high’
         ELSE ‘Normal’
       END = ‘low’

以下是该 SQL 语句的查询计划,其执行时间为 2.20 秒。由于 CASE 表达式无法利用 emp_salary 索引,查询对 EMPLOYEE 表执行了顺序扫描(Seq Scan)。

我们可以使用以下带有多个 OR 条件的语法来重写 CASE 表达式。

select *
  from employee
 where (emp_salary < 1000 and
        ‘low’ = ‘low’ or
        (not (emp_salary < 1000)) and
        emp_salary > 100000 and
        ‘high’ = ‘low’ or
        (not (emp_salary < 1000 or
              emp_salary > 100000)) and
        ‘Normal’ = ‘low’);

如果 emp_salary 字段可为空(nullable),SQL 查询应按照以下方式编写:

select *
  from employee
 where (emp_salary < 1000 and
        ‘low’ = ‘low’ or
        ((not (emp_salary < 1000)) or
         emp_salary is null) and
        emp_salary > 100000 and
        ‘high’ = ‘low’ or
        ((not (emp_salary < 1000 or
               emp_salary > 100000)) or
         emp_salary is null) and
        ‘Normal’ = ‘low’)

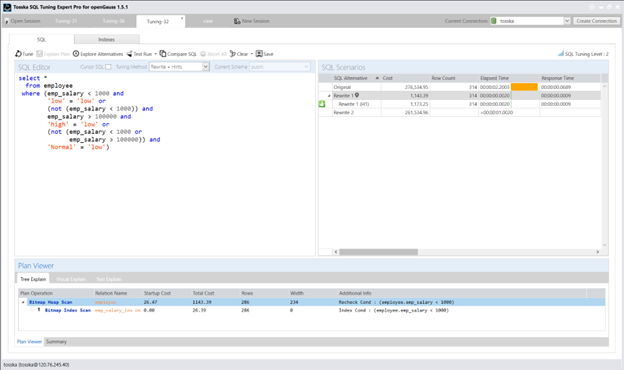

以下是重写后的 SQL 查询计划,其执行时间为 0.002 秒,比原始语法快了 1100 倍。新的查询计划使用了针对 emp_salary 索引的位图索引扫描(Bitmap Index Scan)。
这种重写可以通过 Tosska SQL Tuning Expert Pro 工具为 openGauss 自动实现。还有一些其他重写方法可以提供更好的性能,但由于篇幅限制,本文不适合详细讨论。我可能会在未来的博客文章中进一步探讨这些方法。
